1499,00 PLN including VAT

In stock

SKU: Gło000132 Categories: ,

FEATURES

  • A steel frame with reinforced edges, providing additional structural strength
  • A black anodised voice coil body ensuring excellent heat dissipation
  • A linear, double-roller housing ensuring precise movement of the diaphragm
  • A complex, high-performance engine designed using the FEA method
  • A rigid cone coated with polymic for optimum sound reproduction
  • A hybrid tweeter with a silk dome and rear damping, delivering an extended frequency response
  • A concentric point-source design that enables a smooth transition between midrange and treble frequencies
  • The sound diffuser and radiating flange ensure a better off-axis frequency response
  • The set includes high-quality fitting accessories

SPECIFICATIONS

Butterworth crossover type

Power: 75 W RMS / 100 W max.

Direct current resistance (Re). 2.3 ohms

HP filter type

Frequency response: 60–20 kHz

XO frequency: 5250 Hz

Slope (octave) –6 dB

The diameter of the tweeter voice coil is 20 mm

Mid-range driver diameter: 35 mm

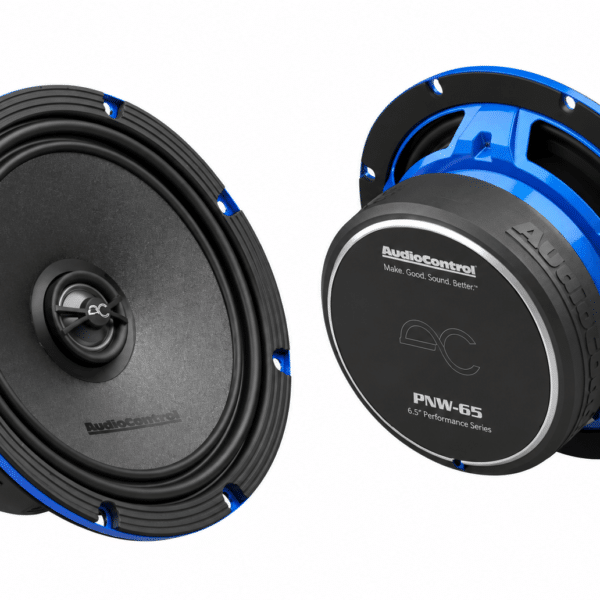

IN THE BOX: (2) PNW-65 speakers, Instructions , Guarantee



DIMENSIONS

  • Overall diameter (excluding grille): 6.5 inches / 166 mm
  • Cut-out diameter: 5.59 inches / 142 mm
  • Installation depth: 2.36 inches / 60 mm
  • Height (excluding grille): 0.20 inches / 5.2 mm
  • Height (including grille): 0.86 inches / 22 mm
  • Motor diameter (including cover): 4.6 inches / 117 mm
  • Overall diameter of the grille: 7.05 inches / 179 mm
