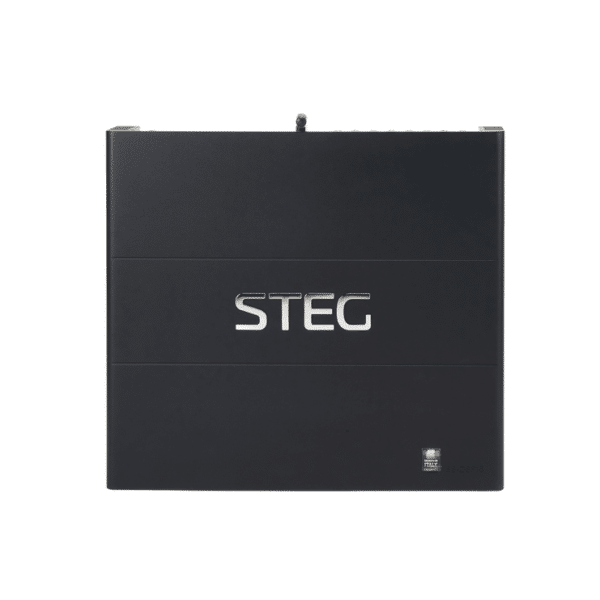

Amplifier with DSP Steg SS-DSP16

Amplifier with advanced DSP technology with OTG input for playback directly from a phone via a special high-definition cable and Bluetooth on board.

The SS-DSP16 is a true all-rounder amplifier that not only delivers power and dynamics for true hi-fi sound, but at the same time has all the requirements for easy vehicle integration and seamless connectivity. The advanced 32-bit co-processor platform not only takes over all control tasks ultra-fast, but also supports many audio functions: fantastic sound effects such as Augmented Bass Processing or Real Center are implemented.

Technical data:

• dynamic range: ≤ 100 dB
• signal-to-noise ratio: ≥ 100 dB
• Input voltage: High level 32Vpp, RCA 6Vpp
• Output voltage: High level 28 Vpp, RCA 8Vpp
• power rating: 16CHx80W(4Ω,14.4V, 1kHz, 10%THD)
• max power: 16CHX120W(4 Ω,14.4V, 1kHz, 10%THD)
• power at bridging: 8CHx200W(4 Ω,14.4V, 1kHz, 10%THD)
• Input/Output sensitivity (RCA): 1:1:3 (without power amplification)
• frequency: 20Hz~20KHz
• Input impedance: High level: 3.3Ω, RCA:47kΩ,
• output impedance: 51Ω
• Operating voltage: 9~16V
• standby power: ≤ 0,1W
• dimensions: 307mm x 276mm x 50mm
• weight: 5.1 kg
