Axion ICA Turn-Assist Blind Spot Detection System AAS Set 1

Blind spot monitoring system.

Functionality:

The ICA system camera detects the area next to the vehicle and monitors the area next to the vehicle defined during installation during the turning process. Using a software-based algorithm, the ICA-Turn Assist system detects movements in this area that are classified as dangerous and warns the driver both visually and audibly by changing the colour of the monitored area on the monitor from green to red, as well as audibly using the attached loudspeaker. The system is active at least within the recommended speed range of 0 to 30 km/h.

As an option, it is also possible to warn the driver with ICA-WLED, a warning LED. We recommend this as an accessory.

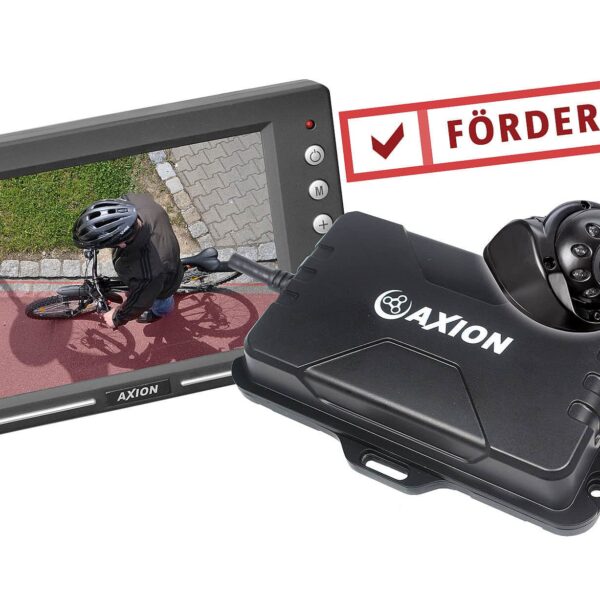

ICA-Turn Assist AAS Set1 consists of:

• ICA-Control-Box
• 1 x front-side camera
• 10 m camera line
• Monitor CRV 7005M

ICA-B2CH Control Box:

• Video input 2
• Video output 1
• Video output formats PAL/NTSC (Auto)
• Power supply 12/24 V
• Power consumption <15 W
• Operating temperature -40°C to +85°C
• Protection class IP68
• Dimensions 170(L) x 120(W) x 40(H) mm
• Weight 497 g

DBC 1140202B camera (150°):

• Image type 1/4″ colour CCD
• Resolution (pixels) PAL: 752(H) x 582(V)
• Lens 150° (horizontal) 1.61 mm, F2.5 9 LEDs for night vision >8 m
• Horizontal resolution of 600 TV lines
• Protection class IP68
• Internal synchronisation
• Signal-to-noise ratio >46 dB (AGC off)
• Power supply DC12 V Power consumption <2.5 W
• Operating temperature range -30°C to +70°C
• Storage temperature range -40°C to +80°C
• Dimensions 85(L) x 78(W) x 97(D) mm
• Weight 235 g

CRV 7005M monitor:

• Monitor size: 7 inches
• Resolution: 1152,000 pixels
• Brightness: 500 cd/m2
• Viewing angle: vertical/horizontal: 80°/80°, up/down: 40/60 °
• Mirror function: yes
• Video system: PAL / NTSC
• Day/night sensor: yes, sensor
• Built-in speakers: yes
• Video inputs: 2x AXION 4p DIN
• Triggers: 2
• Power supply: 12/24 V
• Operating temperature range: -20 °C to +70 °C
• Storage temperature range: -30 °C to +80 °C
• Directional lines: yes
• On-screen display menu (OSD): 7 languages
• Power on mode: yes
• Protection class: IP 54
• Dimensions (HxWxD): 200x115x29 mm
• Weight: approx. 400 g
• Certification: ECE-R10
