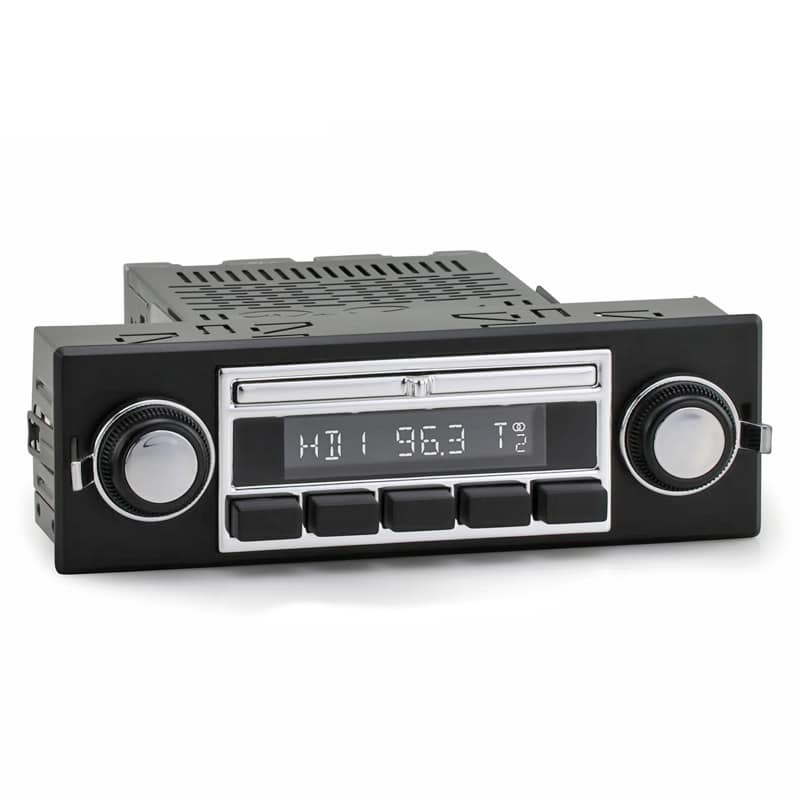

Retro Sound Liberty MOTOR-4DAB radio

The new MOTOR-4DAB is the successor to the MOTOR-6DAB radio module. The most important difference is that the settings can be configured not only directly on the device, but also conveniently via a smartphone app. This is a clearer and simpler solution. With the MOTOR-4DAB, however, it is no longer possible to connect an Apple iPod or iPhone wired - only a wireless connection via Bluetooth is possible.

EQUIPMENT

• MP3 and WMA playback via rear USB inputs
• Bluetooth hands-free car kit with A2DP Audio Streaming function for Apple iPhone and Android smartphones
• Configuration settings via smartphone app
• DAB+/FM/AM radio receiver with RDS and 30-station memory
• Tuner with European odd and even radio frequencies
• Integrated 4-channel amplifier (4×24 W RMS / 45 W max.).
• 3 stereo RCA outputs for external amplifiers (Front/Rear/Subwoofer)
• 3 EQ programmes and individual bass/high frequencies/fader/balance adjustment
• XBAS Loudness function
• Non-volatile memory

EXPANSION POSSIBILITIES

• 2 USB inputs (rear of the unit) supporting media up to 32 GB
• 1 AUX input (stereo) with 3.5 mm jack socket on the rear of the unit
• 3 RCA outputs (stereo) for external amplifiers (Front/Rear/Subwoofer)
• Separate power output for electric antenna and amplifier

CONTENTS OF THE KIT

• Basic radio module
• Main wiring harness
• ISO cable (power and speakers)
• Screws and mounting elements
• Hands-free microphone
• Spacers
• Mounting plate with accessories
• Mounting brackets

TECHNICAL DATA - RADIO

• FM range (Europe): 87.5-107.9 MHz (0.05 MHz step)
• AM range: 530-1710 kHz (9 kHz step)
• DAB+ reception via SMB antenna input for passive DAB+ antennas

GENERAL DATA

• Radio module dimensions: 101 × 51 × 136 mm
• Power supply: 10.5-14.4 V
• Maximum current draw: 15 A
• Bluetooth 5.0
• Current consumption in standby mode: 3.5 mA
• USB charging current: 2.1 A
• Output power at 12 V, 4 Ω, <1% THD: 4×15 W RMS
• Speaker impedance: 4-8 Ω
• RCA outputs: 6 channels, 2.85 V for external amplifiers (Front/Rear/Subwoofer)
• AUX input sensitivity (3.5 mm jack): >300 mV / 6 kΩ
