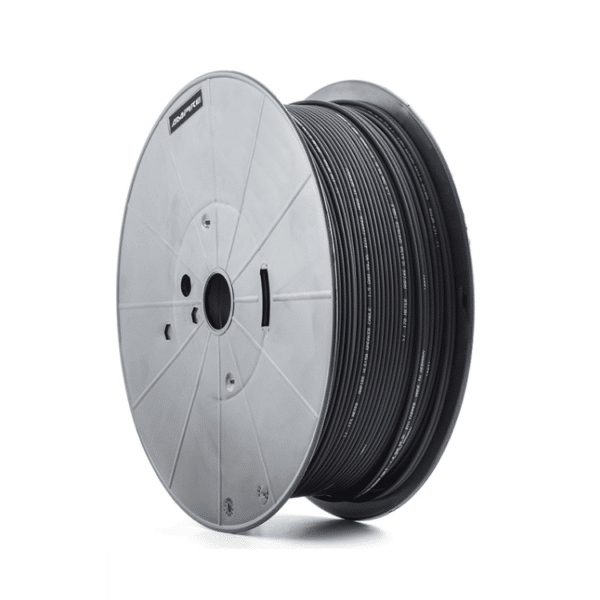

Ampire XSK25 RED/ 35m power cable

High-performance red power cable, X-Link series

WIRED:
- Section 25 mm²
- Stranded construction 0.205 mm x 721 individual conductors
- Diameter 6.58 mm
- Resistance 0.78 Ohm/km
- Copper content 240 kg/km
- 99.9% soft-annealed electrolytic copper, bare (OFC)
- Cu-ETP1/CW003A according to DIN 13602

INSULATION:
- Colour: black
- Outer diameter 9.8mm 0.20
- Soft-touch surface (matt/frosted)
- Robust, flexible and oil-resistant insulation
- Vehicle cable insulation 60 V DC or 25 V AC
- ISO 6722-1, class A
- Shore hardness approx. A68
- Colours according to ISO 6722-1

OTHER:
- Weight 270 kg/km
- Temperature range from -40°C to +90°C
- Made in Germany

What is the difference between OFCu and ECu copper?
The difference is due to the production of the individual wires, with OFCu (99.95% purity) being referred to as oxygen-free (non-oxygenated) copper and ECu (99.90% purity) as oxygen-containing copper.
OFCu copper is used for single wires from 0.07 to 0.15 mm in diameter, and ECu copper is used for wires from 0.20 to 0.30 mm in diameter.

Price quoted per spool of 35m
