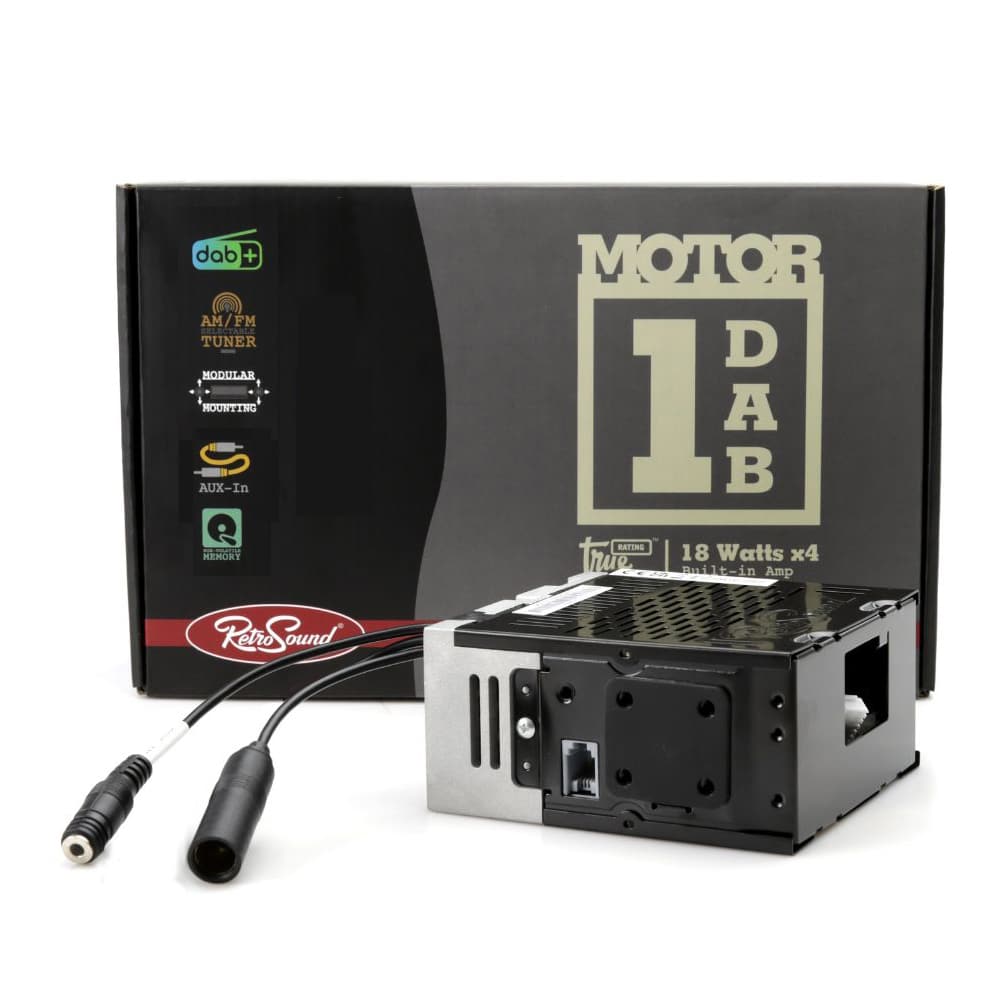

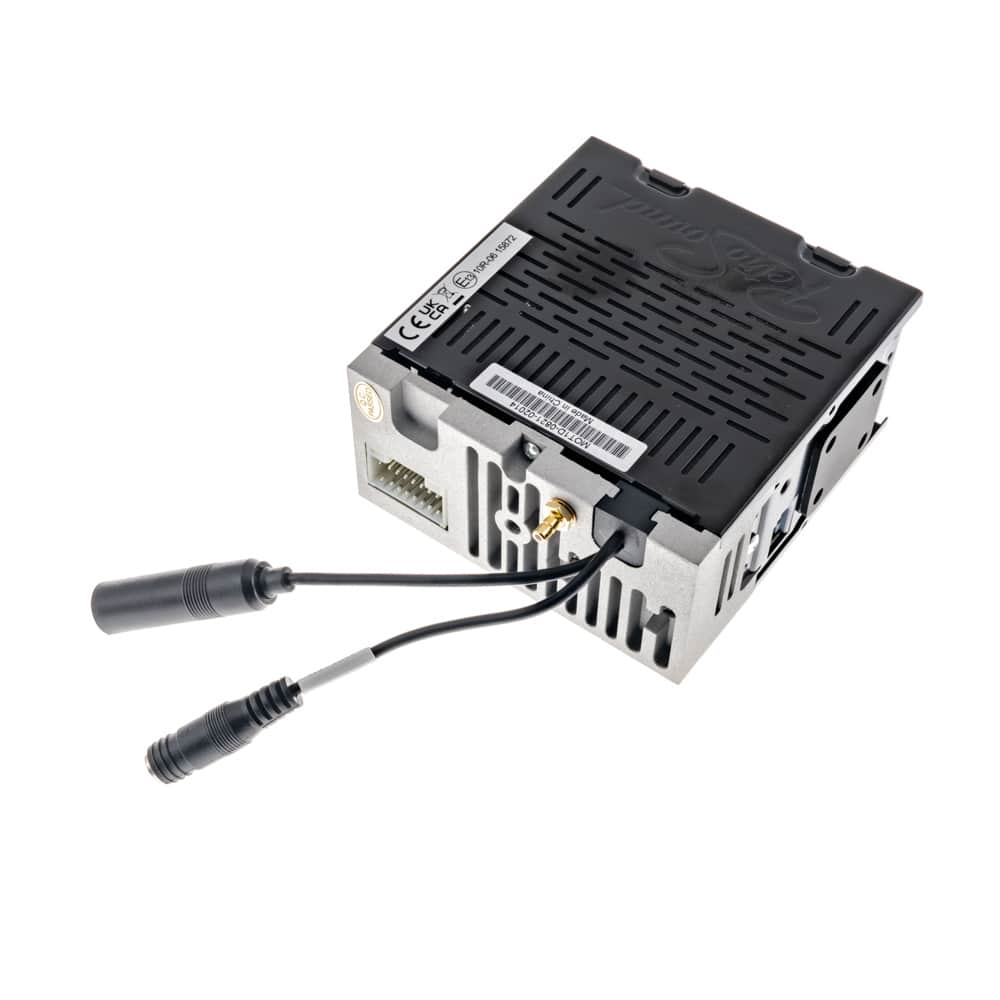

Radio Retro Sound Monza MOTOR-1DAB

The „MOTOR-1DAB” model is the entry-level model with DAB+ digital radio from RetroSound. It is visually identical to the more expensive models. It is equipped with DAB+ radio and RDS.

MOTOR-1DAB

EQUIPMENT

• DAB+/UKF/MW radio receiver with RDS and 30-station memory
• Tuner with European odd and even radio frequencies
• LCD backlight in warm white
• Integrated 4-channel amplifier (4 × 24 W RMS / 45 W max.)
• 3 equalizer programmes and individual bass/treble/fader/balance control
• XBAS loudness function
• Non-volatile memory
• AUX input (3.5 mm jack socket) on the rear of the unit
• Separate feed cables for electric antenna and amplifier

TECHNICAL DATA

• UKF frequency range (Europe): 87.5-107.9 MHz (0.05 MHz step)
• MW frequency range: 530-1710 kHz (step in 9 kHz increments)
• DAB+ reception via SMB antenna input for passive DAB+ antennas

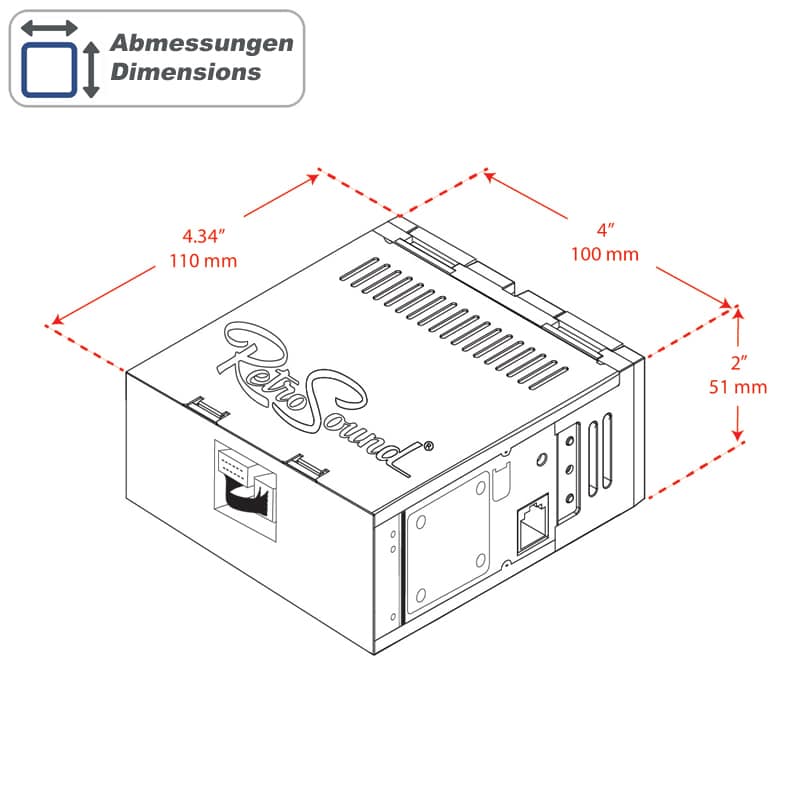

• Radio module dimensions: 100 × 110 × 51 mm
• Power supply: 10.5 to 14.4 V
• Maximum current draw: 15 A
• Current consumption in standby mode: 3.5 mA
• Sinusoidal output power at 12 V, 4 Ohms, <1% distortion: 4 × 18 W (RMS)
• Speaker impedance: 4-8 Ohms
• AUX1 input sensitivity: >300 mV / 6 kOhm
