CVBS reversing camera (NTSC) for Mercedes-Benz Vito from 2016 onwards (W447) with a tailgate.

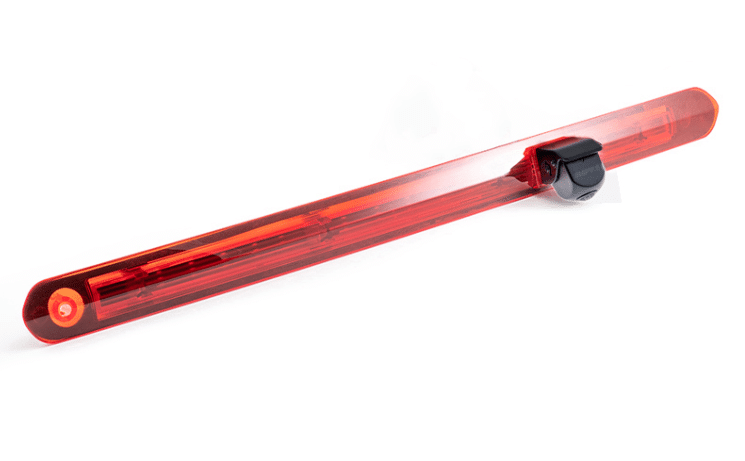

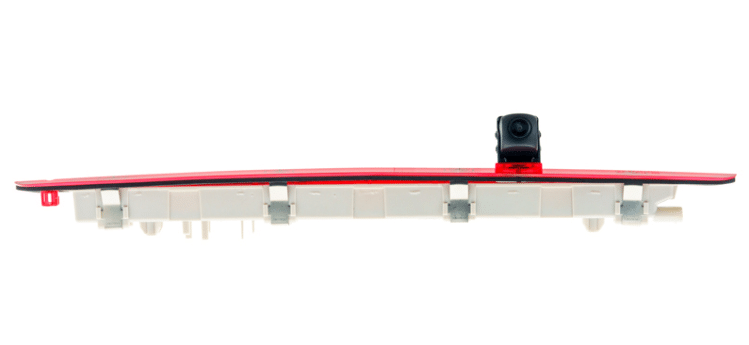

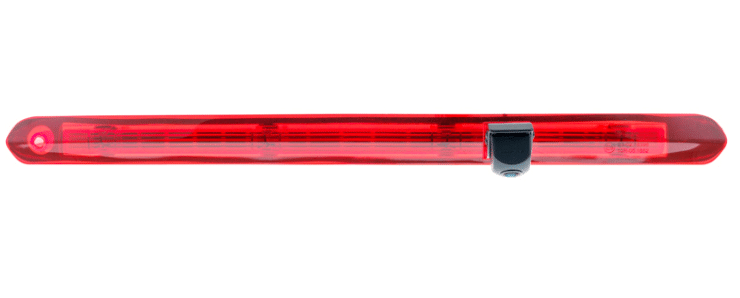

Model KVX-VITO-H replaces the factory glass of the third stop lamp. The camera has been deliberately placed asymmetrically (not centrally) so that it also remains useful when a luggage rack or transport handle is fitted to the tailgate.

COMPATIBILITY

• Mercedes-Benz Vito (2016 onwards) W447 - versions with tailgate only (Heckklappe)

(Does not fit vehicles with rear double doors).

---

TECHNICAL DATA

• Image: mirrored

• Sensor: CMD-III 1/4″ High Performance Digital Super Clarity Image Sensor

• Resolution: 648 × 488 px

• Viewing angle: 170°

• Video format: NTSC (CVBS)

• Quality: 580 lines

• Waterproof: IP69

• Supply voltage: 9-16 V DC

• Current consumption: max. 150 mA

• Operating temperature: -30°C to +70°C

• Minimum lighting: 0 Lux

• Cable length: 10 m, completed 4-pin MINI-DIN connectors

• Approval E: E9-10R-05.1652

• CE Certificates: EN 55022:2010; EN 61000-3-2:2006+A1:2009+A2:2009; EN61000-3-3:2008; EN 55024:2010

• FCC certified: ANSI C63.4-2003

---

CONTENTS OF THE KIT

• Reversing camera

• Power supply AK1035

• Mini-DIN extension cable 10 m AK1034

---

IMPORTANT INFORMATION

Depending on the type of roof structure and the towbar fitted, the towbar may not be visible on the monitor.
Product not suitable for vehicles with rear double doors.
