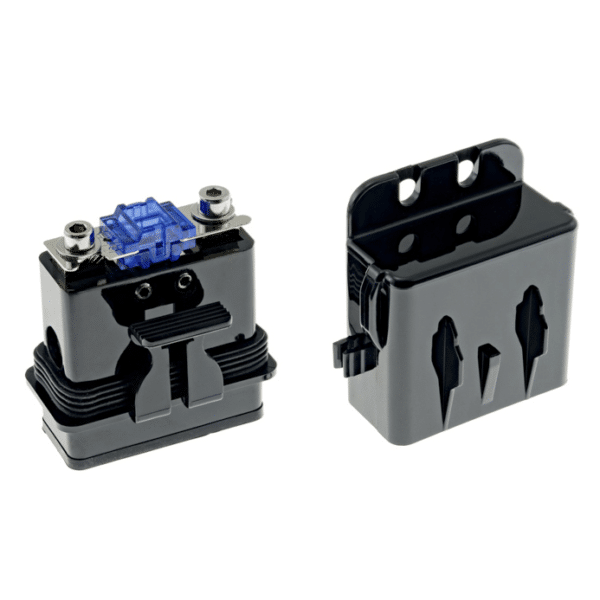

AMPIRE XSM16 fuse holder

A set of waterproof MIDI (Mini-ANL) fuse holders designed for power cables with a cross-section of 16 or 25 mm². Ideal for use in car engine compartments, on motorbikes or on boats.

CONTENTS OF THE KIT

• 1 × waterproof MIDI fuse holder (Mini-ANL)
• 1 × MIDI fuse (Mini-ANL) 60 A, nickel-plated, 12 × 42 mm
• 1 × cable seal for 25 mm² cables
• 1 × cable seal for 16 mm² cables

OPERATING TEMPERATURE
From -40°C to +105°C

IMPORTANT INFORMATION REGARDING INSTALLATION

• Strip the insulation from the end of the cable over a length of 20 mm and fit a cable ferrule to ensure a correct and reliable electrical connection.

IMPORTANT INFORMATION

• Once installation is complete, retighten all the cable terminal screws and the fuse mounting screws to ensure a proper electrical connection.
• The washers must be positioned between the fuse and the Allen screw.
