599,00 PLN including VAT

Shop only available to approved b2b customers
SKU: Mon000003 Category:

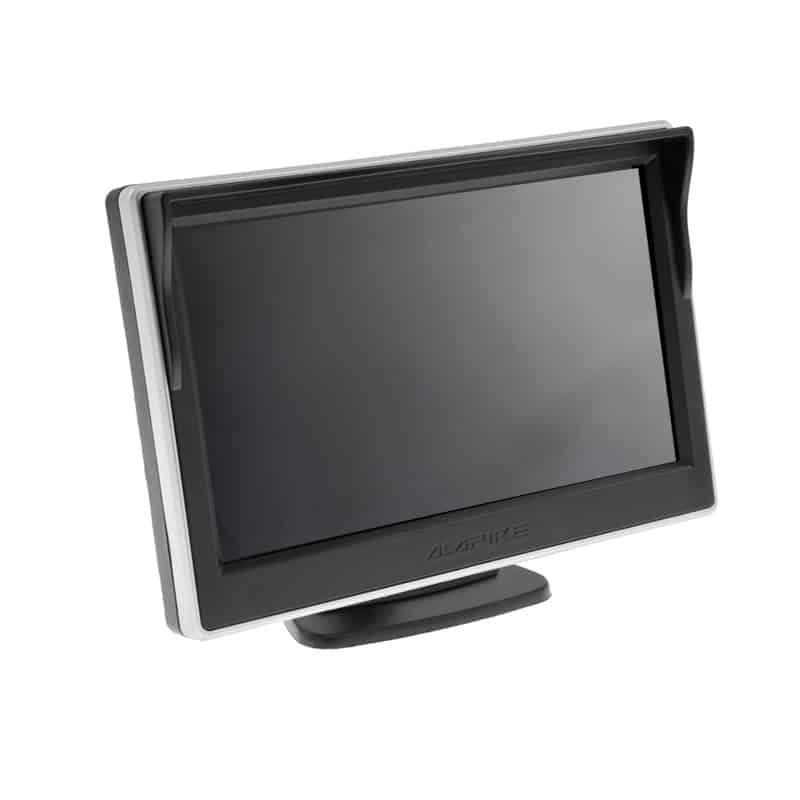

This high-resolution 12.7 cm (5”) built-in monitor with a digital LCD display is a compact monitor that supports up to two AHD or CVBS rear view cameras. Virtually any rear view camera can be connected to this multi-system monitor, whether it is an AHD camera with a resolution of 720N, 720P, 960N, 960P, 1080N or 1080P and 25 or 30 frames per second. Of course, it is also compatible with standard CVBS (FBAS) cameras in PAL or NTSC systems.

If you do not have space for larger monitors in your vehicle or wish to install a monitor instead of a rear-view mirror, the RVA051 model will be the best choice. You will always find a suitable mounting location for the universal RVA051 model. In addition, thanks to its wide range of digital image settings, it is ideal for use with reversing cameras.

TECHNICAL DATA

  • 12.7 cm (5”) digital colour TFT LCD display in 16:9 format

  • 2x video inputs

  • Compatible with AHD 720N, 720P, 960N, 960P, 1080N, 1080P (25/30 fps)

  • Compatible with CVBS (FBAS) PAL/NTSC (25/30 fps)

  • Brightness: 600 cd/m²

  • Contrast ratio: 500:1

  • Viewing angle: 85°/85°/85°/85° (left/right/top/bottom)

  • LED backlighting

  • High resolution of 800×480 pixels (HD)

  • Image playback: normal/mirror

  • Image playback: normal/rotated by 180°

  • Guide lines: adjustable/deactivated

  • Automatic switch-on (2 seconds)

  • Power supply voltage: 9–32 V DC

  • Current consumption at 12 V: 250 mA (operation), 150 mA (after ignition is switched on)

  • Operating temperature: -20° to 70°C

  • Storage temperature: -30° to 80°C

  • Monitor dimensions: 126 x 83 x 33 mm

  • Our monitors comply with ISO 9241-307, pixel defect class II.

  • 7 different menu languages (DE, EN, FR, NL, IT, ES, SE)

SCOPE OF DELIVERY

  • 5" (12.7 cm) AHD monitor

  • Suction cup handle

  • Holder with self-adhesive base

  • Connecting cable

Weight 0,3 kg
