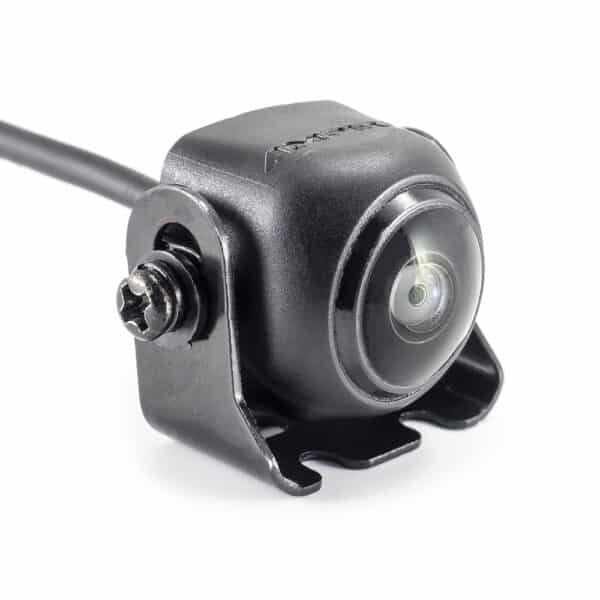

Ampire KCX302-ECO camera

The KCX302-ECO is a reversing camera for a wide range of applications in a car, bus, camper, truck or trailer. The matte black housing is particularly weatherproof, waterproof with IP69K rating and solidly constructed. It offers a choice of two different auxiliary lines (narrow/wide) that can be displayed on the video signal, making it easier for the driver to park. The camera comes complete with an 8-metre extension cable with high-quality copper wires. Unlike the larger version of the KCX302, the KCX302-ECO model does not have an input for an optional front camera, nor does it have a shut-off delay, which optionally keeps the reversing camera or front camera active for a few extra seconds.

Technical data:

• 2 different auxiliary lines: off by default (to be switched on)
• Matt black housing with stainless steel handle
• Image reflection (adjustable)
• 180° image rotation (adjustable)
• Image sensor type 1/4" 1233 HD Color CMOS Low Light Sensor
• NTSC video at 60 frames per second
• Pixel resolution 960H×480V
• Protection class IP69K
• 800 TV line resolution
• Exposure time 1/50-60~1/15000 seconds
• Signal-to-noise ratio >46dB
• Dynamics >74dB
• Light sensitivity < 0.01 Lux/F1.2
• Output signal 1.0Vp-p, 75 OHM
• Automatic white regulation
• Automatic video level adjustment
• Supply voltage 12 Volt DC
• Current consumption 25-55mA
• Diagonal viewing angle 170°
• Horizontal viewing angle 115°
• Vertical viewing angle 95°
• Camera dimensions 12.5 x 15mm
• Operating temperature range -40°C to +75°C
• Storage temperature -60°C to 105°C
• E-certified according to safety standards
• Can be used continuously 24/7
